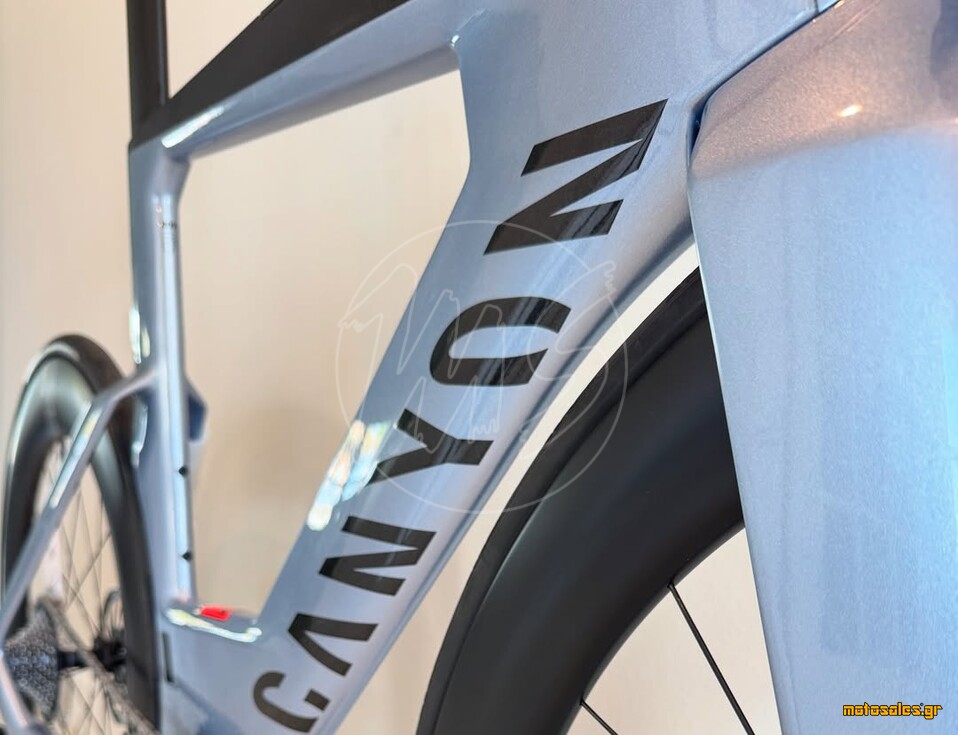

Frame
Canyon Speedmax CF SLX Disc, All-new Speedmax CF SLX frame shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Axle dimension: 12x142 mm, Tyre clearance: 30 mm, Material: Carbon (CF), Weight: 3.75 lbs
BB Standard: BB86/BB92, 86mm, Press Fit
Tire Clearance: 30c
Color: Arctic Grey
Fork
Canyon FK0080 CF Disc, Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/8", Tyre clearance: 30 mm, Material: Carbon (CF), Weight: 1.48 lbs
Bottom Bracket
SRAM DUB Pressfit, Bottom bracket standard: PF 86,5, Weight: 0.15 lbs
Handlebar
Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
Saddle
Selle Italia Watt Superflow, Gender: Unisex, Weight: 0.55 lbs
Seatpost
Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Material: Carbon (CF), Weight: 0.34 lbs
Type: Rigid
Pedals
None included
Groupset
Rear Derailleur
SRAM Force AXS RD 12s, Weight: 0.67 lbs

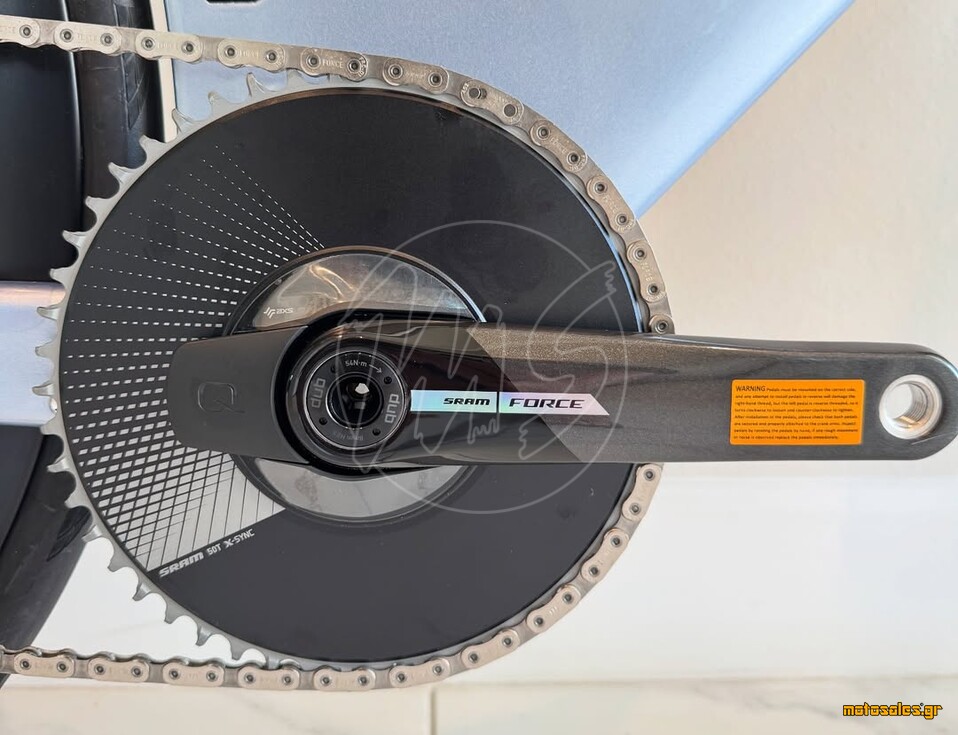

Crank
SRAM Force AXS Power Meter, Number of chainrings: 1
Power Meter
SRAM Force AXS Power Meter, Number of chainrings: 1
Shifters
SL SRAM BLIP AXS WLS MOUNT TAPE, Weight: 1.15 lbs

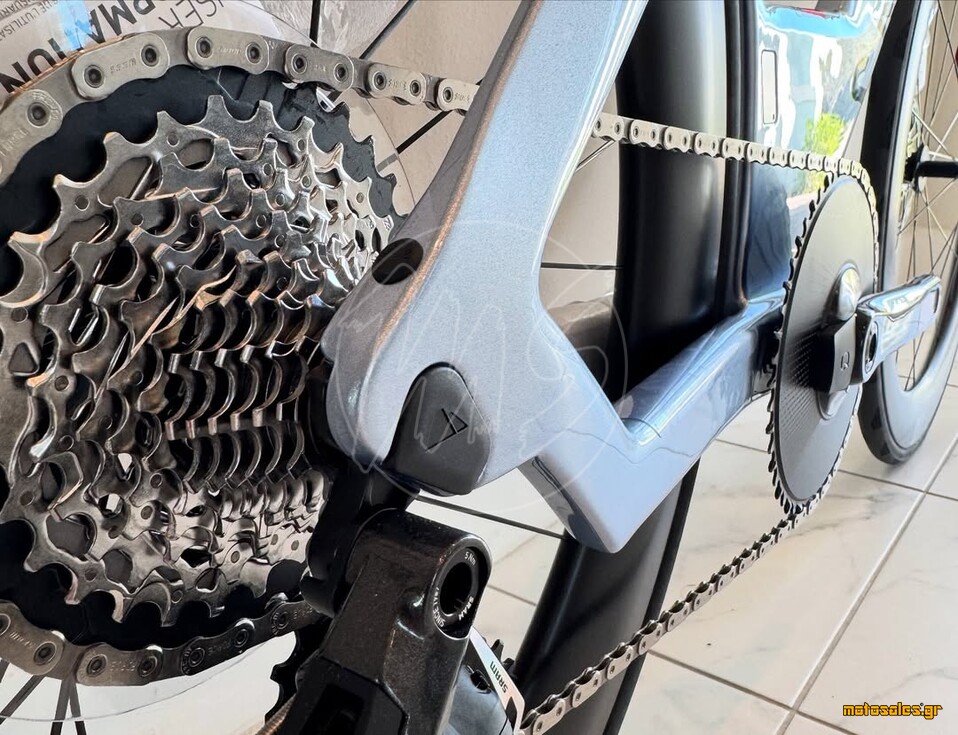

Cassette
SRAM Force XG-1270 12s 10-33T, Number of sprockets: 12, Range: 10-33
Chain
SRAM Force D1 12s
Brakes
SRAM S-900 Aero HRD, Number of pistons: 2, Weight: 0.62 lbs | SRAM S-900 Aero HRD, Weight: 0.60 lbs
Type: SRAM Hydraulic Disc
Brake Levers
SRAM S-900 Aero HRD, Number of pistons: 2, Weight: 0.62 lbs | SRAM S-900 Aero HRD, Weight: 0.60 lbs

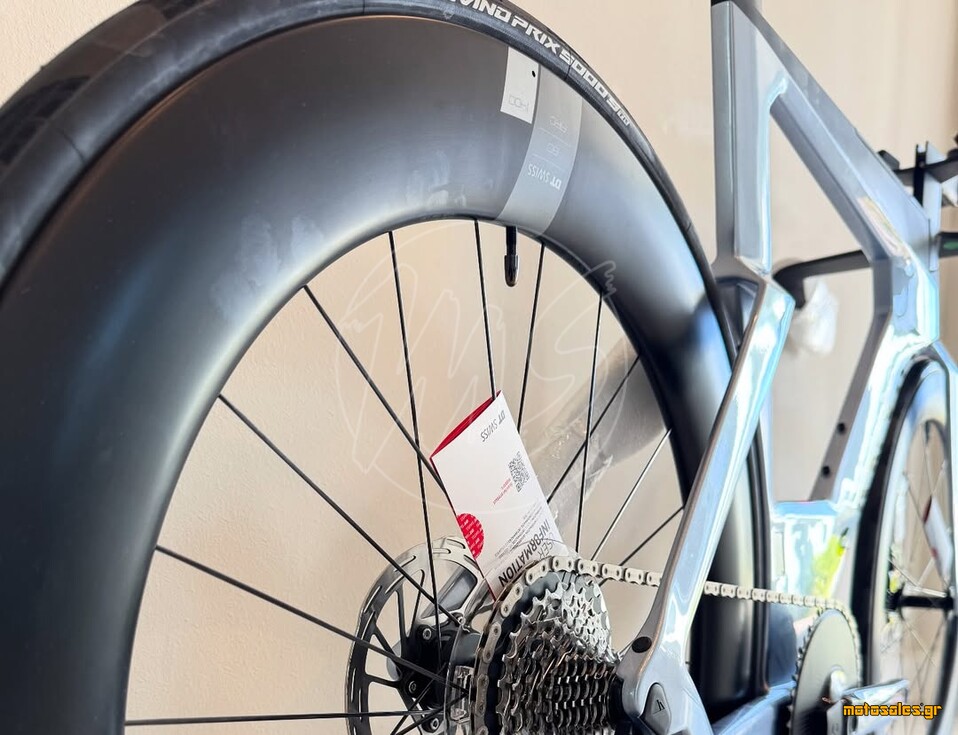

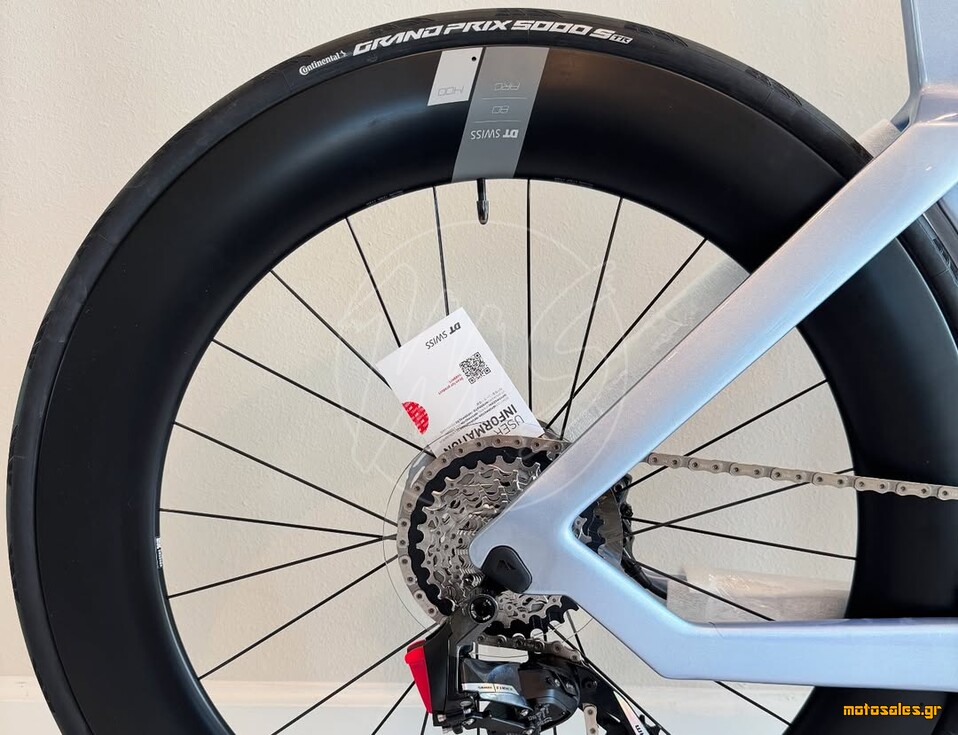

Wheels
Rims
Front: DT Swiss ARC 1400 Dicut, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 62 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.76 lbs, Rear: DT Swiss ARC 1400 Dicut, XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 80 mm, Rim material: Carbon, Weight: 2.19 lbs

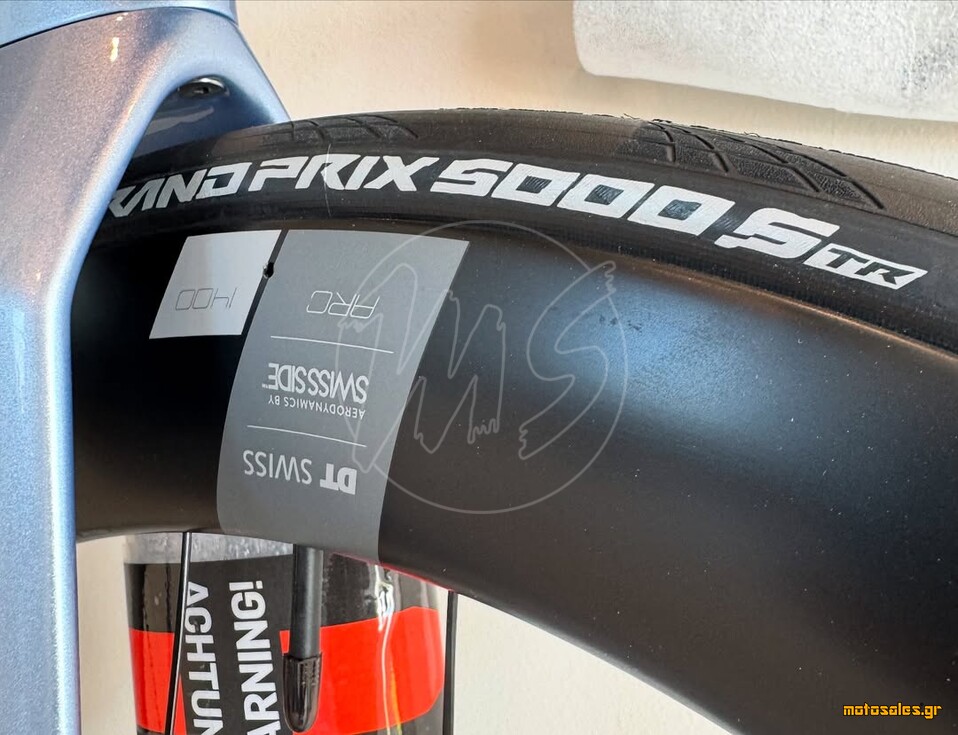

Tires
Continental Grand Prix 5000 S TR, 28mm, Width: 28 mm, Weight: 0.65 lbs | Continental Aero 111, Width: 26 mm, Weight: 0.54 lbs
Disc Rotors
SRAM Paceline, Size: 160 mm, Weight: 0.35 lbs
